Moisture Alarm


  • Please log in to reply
7 replies to this topic

#1 PRC

PRC

    Great White

  • Member
  • PipPipPipPip
  • 1163 posts
  • Gender:Male
  • Location:Guernsey Channel Islands

Posted 01 May 2006 - 11:54 PM

Following a request I have written up a brief outline of a home cooked moisture alarm.

Currently it is posted up on my web site
here

If any other info is desired please drop me a line.

Paul C
Nikon D300, Subal, 2 * Inon 240
Water Temp (just cold & Nasty)
My Pictures

#2 Arnon_Ayal

Arnon_Ayal

    Sperm Whale

  • Member
  • PipPipPipPipPip
  • 1826 posts
  • Gender:Male

Posted 02 May 2006 - 12:26 AM

Tn'x, very interesting.
I thought to build one by myself but because the audio problem I added I decided to buy one with it.
Can you post more pictures of the circuit in the housing with better point view?
Arnon Ayal www.arnonayal.com
Nikon D200, Ikelite housing, Dual SB105.

#3 PRC

PRC

    Great White

  • Member
  • PipPipPipPip
  • 1163 posts
  • Gender:Male
  • Location:Guernsey Channel Islands

Posted 02 May 2006 - 05:04 AM

Not of that one sadly !

The D70 housing is all packed up and ready to ship, just waiting payment to clear.

At the time I made two and will install one in my new D200 housing at some point soon.

Asking the piezo audio transducers to work at between 2 and 3v is quite a big ask. I ran out of interest in cooking up a cct to stabilize the oscillator which has a tendency to change frequency based on cell voltage. As the piezo's also are very 'peaky' in audio output vs Freq. it became more hassle than it was worth.

It can be done but these LED's put out so much light it would be hard to miss - more so in an ike type clear housing which acts like a light pipe itself.

Paul C
Nikon D300, Subal, 2 * Inon 240
Water Temp (just cold & Nasty)
My Pictures

#4 okuma

okuma

    Great Hammerhead

  • Industry
  • PipPipPipPip
  • 742 posts
  • Gender:Male
  • Location:Anaheim, CA USA

Posted 03 May 2006 - 09:51 PM

Paul:
Thanks for the diagram. Unfortunately, not having an EE degree it makes no sense to me.

Could you be convinced to rewrite in a step 1, step 2 ....
for the Dummy Diver Corps?

Thanks,
Allan
Underwater Photography:
If it is so easy every one would be doing it!

Nikon D 7000, Subal Housing, Inon Z 240 strobes.

#5 Arnon_Ayal

Arnon_Ayal

    Sperm Whale

  • Member
  • PipPipPipPipPip
  • 1826 posts
  • Gender:Male

Posted 03 May 2006 - 10:25 PM

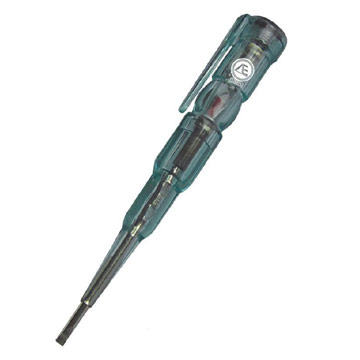

The easiest way to build a DIY moisture alarm I found is to use a voltage tester as the detector. I mean the ones with the inner circuit not the simplest ones. Its cost 2-3$ and according to my tests it detect water very well.
I tool all the items outside the plastic cylinder and attached to it simple electrodes and tested it.
I decided to buy something else since I wanted audio alarm.

Posted Image
Arnon Ayal www.arnonayal.com
Nikon D200, Ikelite housing, Dual SB105.

#6 n de d

n de d

    Clownfish

  • Member
  • Pip
  • 26 posts

Posted 14 May 2006 - 01:50 PM

.......... link ............ Water Activated Alarm

Posted Image

Attached Images

  • Tom_water_alm.annotated.gif


#7 PRC

PRC

    Great White

  • Member
  • PipPipPipPip
  • 1163 posts
  • Gender:Male
  • Location:Guernsey Channel Islands

Posted 15 May 2006 - 03:31 AM

Should work - you may want to add a resistor from the base to Gnd, as it stands the BC109 has a pretty hi input Z and may take off - oscillation could be an issue.

Paul C
Nikon D300, Subal, 2 * Inon 240
Water Temp (just cold & Nasty)
My Pictures

#8 Panda

Panda

    Sting Ray

  • Member
  • PipPipPip
  • 265 posts
  • Gender:Male
  • Location:Geelong, Australia
  • Interests:Split levels, timelapse, temperate critters.

Posted 27 September 2007 - 12:39 AM

Here's a very very simple one.
12v 23A battery, 12V buzzer, wire and heat shrink tube....that's all.
It works beautifully.

Posted Image

anewton.net - UW blog - KAP blog
Victoria Australia. Nikon D7000, Lumix LX3. Ikelite. Inon. GoPro 2
